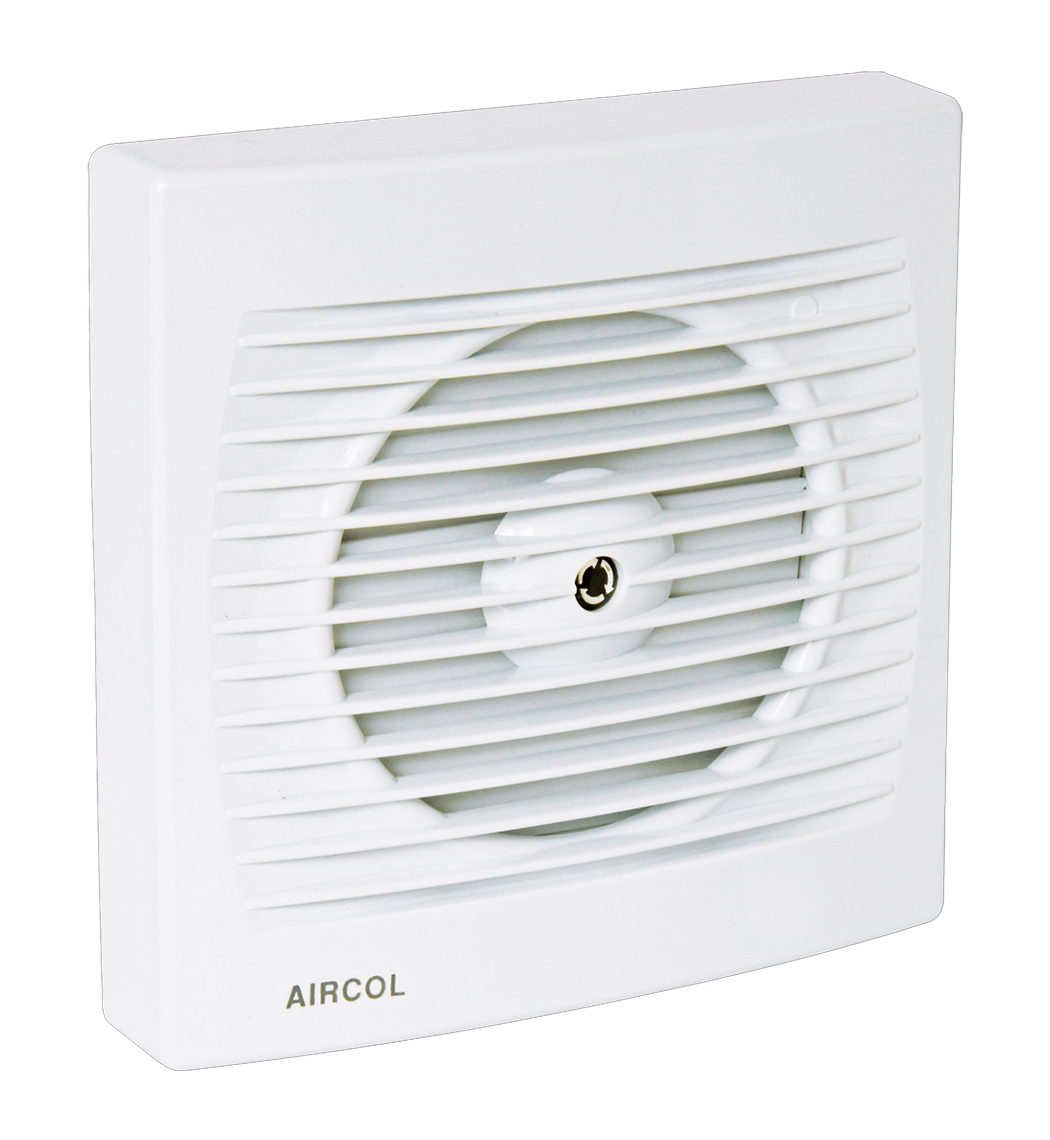

AIRCOL 100 OP DOMESTIC AXIAL FAN
AIRCOL 100 OP DOMESTIC AXIAL FAN
AIRCOL 100 OP DOMESTIC AXIAL FAN
AIRCOL 100 OP DOMESTIC AXIAL FAN
UMY TECHNIC

AIRCOL 100 OP DOMESTIC AXIAL FAN

£15.42 Excl. VAT
£18.5 Incl. VAT (20.0%)

Add your personalization

Add your name, note or upload your customized idea image to personalise your item. Custom items cannot be returned or exchanged.

Hurry Up! Only 50 left in stock!

Estimate delivery times: 3-6 days (UK).

Return within 10 days of purchase. Duties & taxes are non-refundable.

AIRCOL 100 OP DOMESTIC AXIAL FAN
AIRCOL 100 OP DOMESTIC AXIAL FAN
£15.42 Excl. VAT
£18.5 Incl. VAT (20.0%)

  • Automatic shutter automatically opens 30 seconds after the fan is switched on and automatically closes 30 seconds after the fan is switched off.
  • Provides optimum protection against external factors such as dust, malodor or cold when the fan is not operated thanks to the automatic shutter.
  • With the automatic shutter operation placed inside the equipment, aesthetic appearance of the front cover is in the forefront rather than the shutter.
  • Provides the highest possible protection against external factors such as malodors and moisture, and maintains its initial appearance thanks to the high-quality ABS plastic material used.
  • Front cover can be easily cleaned by being rubbed off.
  • Minimum sound level thanks to the optimum motor and body design.
  • Self lubricating motor bearings offer a silent and long-life performance.
  • The equipment can be horizontally or vertically installed on walls, ceilings, windows, etc. with ease.
  • Very simple installation thanks to the fastening bracket given with the product.
  • Suitable for any type of ducts and places with various sizes thanks to three models with different dimensions (Ø100, 120, 150 mm).
  • IPX4 protection against water splash.
  • All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Installation Examples

Installation on ceiling Installation on wall with an extension
Installation on wall Installation on single or double layer glazing


Installation Procedure

Installtion on Glazing
» Create a hole of Ø104~ Ø109 mm on the glass.
» Stick the four sound absorber sponges given with the product on four corners of the fan.
» Lastly, install the fan on the glazing by use of the fastening bracket.



Installation on Wall
» Remove front cover.
» Create a hole of Ø104~ Ø109 mm on the wall.
» Create four Ø6 mm dowel holes on the wall for four corners of the fan and place the dowels in the holes.
» Stick the four sound absorber sponges given with the product on four corners of the fan in such a manner that the screw holes are not closed.
» Install the fan on the wall as seen on the detailed diagram



Voltage/Frequency (Volt/Hz) 230/50
Current (A) 0.12
Power (Watt) 18
Air Flow (m³/hour) 100
Speed (Rpm) 2200

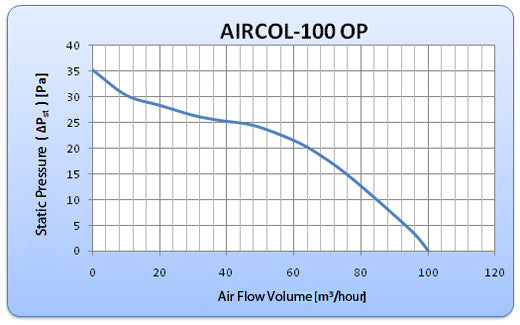

Pressure (Pa) 36
Sound Pressure Level (@3m) (dB (A)) 31
Min. / Max. Ambient Temperature (ºC) -30 / 40
Material ABS plastic
Protection Class / IP II / IPX4
Motor Insulation Class B
Approval TSE
Certification CE





MODEL A B C D E
AIRCOL 100 OP 157,5 157,5 64 108,5 100
