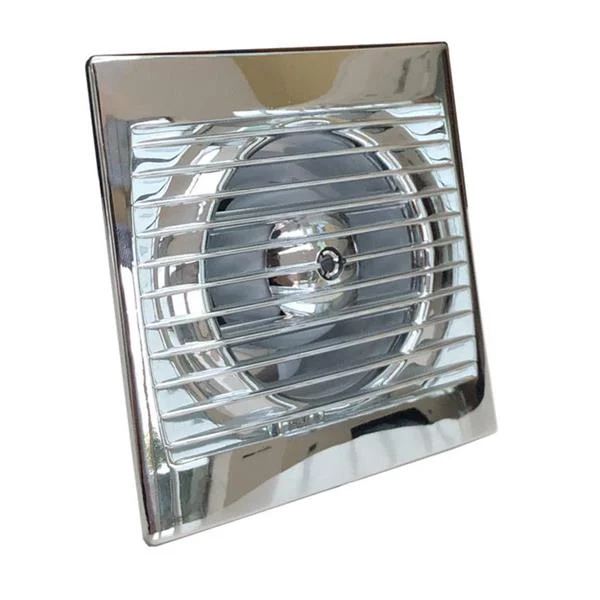

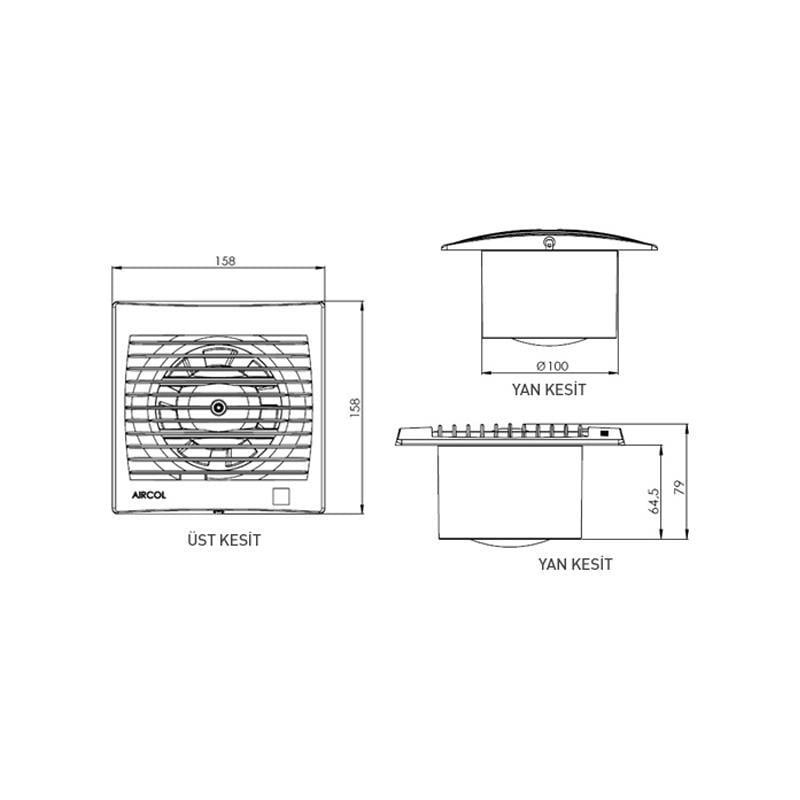

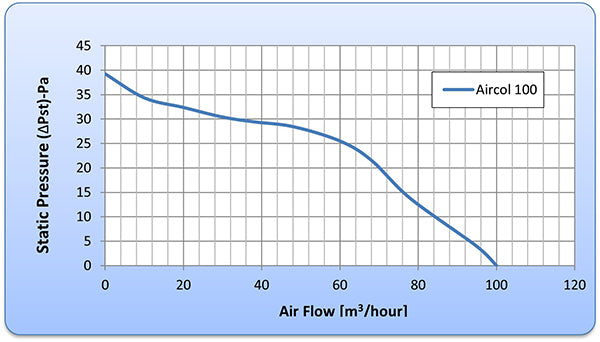

AIRCOL 100 CHR0ME DOMESTIC AXIAL FAN

• An indispensable part of decorative places with its very slim and elegant front view.
• Provides the highest possible protection against external factors such as malodors and moisture, and maintains its initial appearance thanks to the high-quality ABS plastic material used.
• Front cover can be very easily removed and cleaned by being washed or rubbed off.
• Minimum sound level thanks to the optimum motor and body design.
• Self lubricating motor bearings offer a silent and long-life performance.
• The equipment can be horizontally or vertically installed on walls, ceilings, windows, etc. with ease.
• Very simple installation thanks to the fastening bracket given with the product.
• Suitable for any type of ducts and places with various sizes thanks to four models with different dimensions (Ø100, 120, 150, 200 mm).
• IPX4 protection against water splash.
• All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.

Installation Examples

Installation on ceiling	Installation on wall with an extension
Installation on wall	Installation on single or double layer glazing

Installation Procedure

Installtion on Glazing

» Create a hole of Ø104~ Ø109 mm on the glass. » Stick the four sound absorber sponges given with the product on four corners of the fan. » Lastly, install the fan on the glazing by use of the fastening bracket.

Installation on Wall

» Remove front cover. » Create a hole of Ø104~ Ø109 mm on the wall. » Create four Ø6 mm dowel holes on the wall for four corners of the fan and place the dowels in the holes. » Stick the four sound absorber sponges given with the product on four corners of the fan in such a manner that the screw holes are not closed. » Install the fan on the wall as seen on the detailed diagram.
