AIRCOL 250 KF ROUND DUCT FAN
AIRCOL 250 KF ROUND DUCT FAN
AIRCOL 250 KF ROUND DUCT FAN
AIRCOL 250 KF ROUND DUCT FAN
UMY TECHNIC

AIRCOL 250 KF ROUND DUCT FAN

£63.33 Excl. VAT
£76.0 Incl. VAT (20.0%)

Add your personalization

Add your name, note or upload your customized idea image to personalise your item. Custom items cannot be returned or exchanged.

Hurry Up! Only 10 left in stock!

Estimate delivery times: 3-6 days (UK).

Return within 10 days of purchase. Duties & taxes are non-refundable.

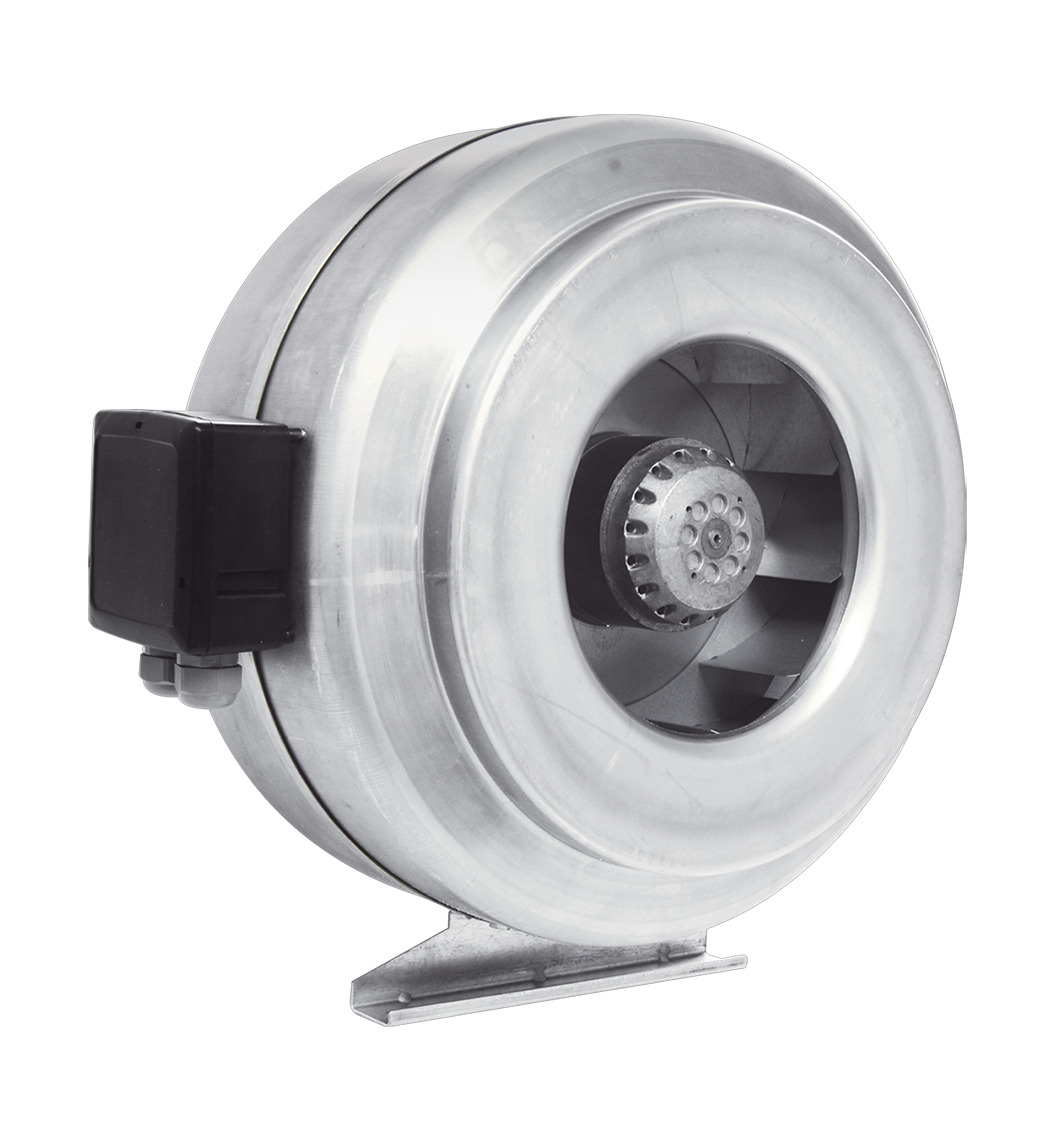

AIRCOL 250 KF ROUND DUCT FAN
AIRCOL 250 KF ROUND DUCT FAN
£63.33 Excl. VAT
£76.0 Incl. VAT (20.0%)
  • For various sized places:
  • Suitable for ventilation of residences, offices, public toilets, shopping centers, sports centers, theatres, laboratories, factories, workshops, paint shops, storehouses, garages, etc.
  • Designed especially for installation via a duct connection in order to discharge polluted air and provide fresh air.

OPTIONS OF USE

 Standard use with the on-off button.
 Possibility to use at desired speed by use of speed control devices.
 Thermal protection with sensors against overheating in hot places.

  • Resistant to corrosion, high temperatures and other harsh conditions thanks to the body made of high-quality galvanized steel sheet.
  • High pressure air flow, low noise level and high efficiency thanks to the backward inclined impeller design.
  • Generating minimum level of vibration, the product successfully passed the tests performed in compliance with the ISO 1940 standard.
  • Very easy electric connection with the terminal box included in the IP54 protection class.
  • Installation to any location by the help of the installation apparatus given with the product.
  • Suitable for use in different size places thanks to different size models.
  • IPX4 protection against water splash.
  • Low energy consumption and high efficiency thanks to the external rotor mono-phase motor.
  • Motor bearings offer a silent and long-life performance without the need of maintenance.
  • Motor included in the IP44 protection class and F insulation class.
  • All products are manufactured in accordance with the EN 60335-2-80, Low Voltage Equipment [2014/35/EU] and Electromagnetic Compatibility [2014/30/EU] norms.
Voltage/Frequency (Volt/Hz) 230/50
Current (A) 0.65
Power (Watt) 150
Capacitor (µF) 5/400

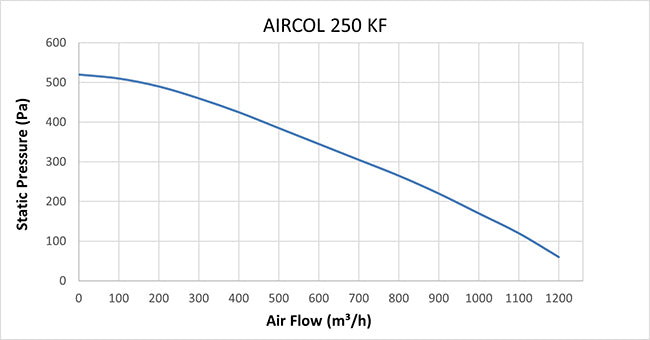

Air Flow (m³/hour) 1200
Speed (Rpm) 2600
Pressure (Pa) 520
Sound Pressure Level (@3m) (dB (A)) 57
Min. / Max. Ambient Temperature (ºC) -25 / 60
Material Galvanized Metal Sheet
Protection Class / IP II / IPX4
Motor Insulation Class H
Approval TSE
Certification CE




MODEL A B C D E F G H I J K
AIRCOL 250 KF 227 30 248 342 130 225 210,5 170 35,5 14 6,5


INSTALLATION

  1. Create two holes of Ø8 mm on the installation surface, with a distance of 170 mm between them.
  2. After placing the dowels given with the product in the holes, fasten them in a certain amount by use of a wrench or screwdriver as seen in the figure.
  3. As seen in the figure, place the installation foot of the fan in the screw housing you prepared and slide it downwards.
  4. Fully fasten the screws in order to complete installation.
  5. Lastly, install the induct duct to the induct fan by use of installation brackets.
